OUR PRODUCTS

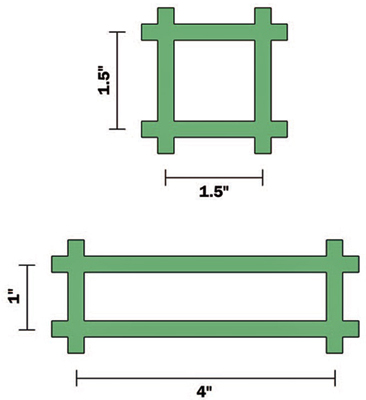

• STANDARD MESHES

  1-1/2" x 1-1/2" square mesh

  # of Bars/Ft of Width: 8
  Open Area: 70%
  Load Bar Width: 1/4"
  Load Bar Centers: 1-1/2"
  Standard Depths: 1/2", 1", 1-1/4" 1-1 /2"


  1" x 4" Rectangular Mesh
  # of Bars/Ft of Width: 12
  Open Area: 65%
  Load Bar Width: 1/4"
  Cross Bar Width: 3/8"
  Load Bar Centers: 1"
  Standard Depth: 1"

  Other Meshes are available upon request.

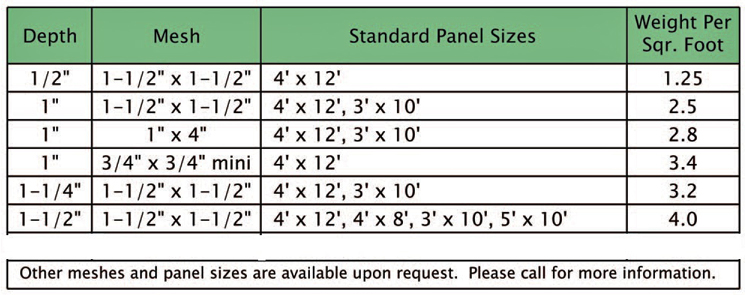

  SELECTION CHART

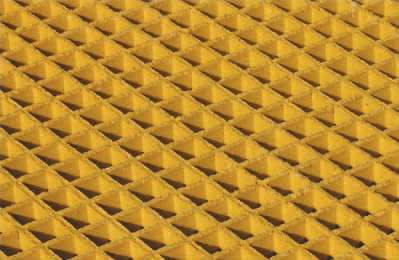

• RESINS

  Grate offers a variety of resin choices to meet your corrosion control needs. For more information on what resin might work best in your application, please consult the Chemical Resistance Chart

  A high-grade polyester resin for use in most applications where good corrosion resistance is required. ASTM flame spread rating of 25 or less.

  A food-grade polyester resin for use in the food, dairy, or meat packing industry. Food compatible ingredients are used in the fire-retardant additive, giving a flame spread rating of 35 or less.





  Specialty resins are available upon request. Various resin formulas can be offered to meet different flame spread ratings, temperature ranges, and corrosion resistances.
  Embedded Grit: Grit is added to the mold after the grating has been laid but not cured. Grit and resin are forced into the top of the grating and allowed to cure with the grating. A clean, durable grit surface.

  Slip/fall accidents are one of the greatest dangers in an industrial environment, costing employers both time and money. RP Grates offers a wide variety of anti-slip surfaces to help eliminate this danger.

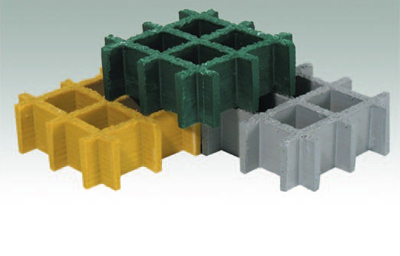

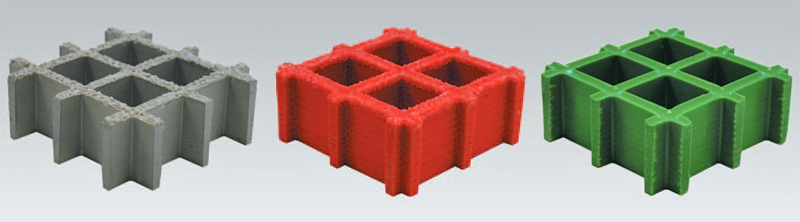

  SURFACES












  Embedded Grit: Grit is added to the mold after the grating has been laid but not cured. Grit and resin are forced into the top of the grating and allowed to cure with the grating. A clean, durable grit surface.

  Post-cure Grit: After the grating is cured and removed from the mold, grit is applied to the top of the grating with a strong adhesive. The grit surface is heat-cured with an additional top coat of adhesive for a maximum bond.

  Meniscus: No grit is added to the surface after the grating is removed from the mold. A natural anti-slip meniscus surface is formed during the curing process.



  COLORS


  An assortment of standard colors are available, including green, yellow, light gray, and dark gray. Special colors include orange, red, and other shades of green. Custom colors are available for special order. Please call for color and grit samples.

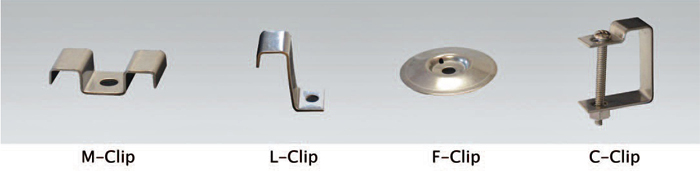

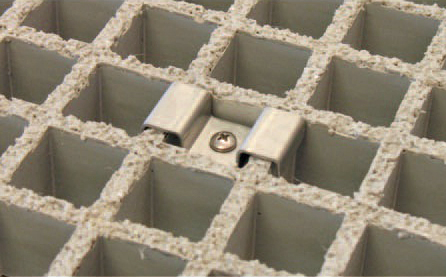

  CLIPS



  RP Grates offers a variety of specialty hold-down clips to help secure our grating to structural supports. Each clip is specifically designed for our grating and plate products. All clips are made of 316SS for maximum corrosion resistance.

  RP Grates recommends placing clips every 48", using a minimum of 4 clips on any piece of grating and 8 clips on a full 4' x 12' panel.

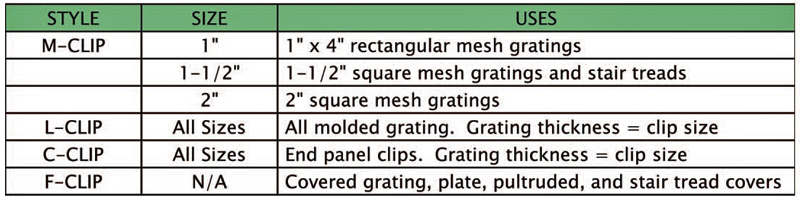

  Clip Selection




  FRP GRATING SIZE AVAILABLE

  FRP SQUARE GRATING
  1335MM X 4070MM (38MM X 38MM X 25MM, 30MM, 35MM, 38MM, 40MM)
  1220MM X 3660MM (38MM X 38MM X 25MM, 30MM, 35MM, 38MM, 40MM)
  1220MM X 3730MM (38MM X 38MM X 25MM, 30MM, 35MM, 38MM, 40MM)

  FRP RECTANGLE GRATING

  1220MM X 3660MM (25MM X 100MM X 25MM, 30MM, 35MM, 38MM, 40MM)

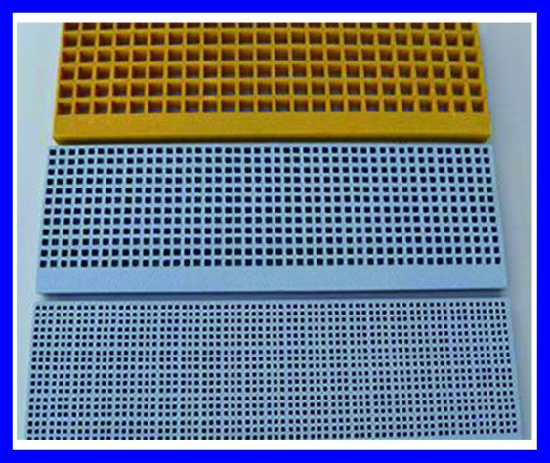

  FRP MICRO MESH GRATING

  1220MM X 3660MM (38MM X 38MM X 25MM, 30MM, 38MM)



  MANHOLE COVERS





  With a better performance than Cast Iron, Ductile Iron and RCC manhole covers, this product is an industrial revolution. They have been thoroughly tested as per BSEN 124, IS 1726 & AASHTO M306 standards for drainage and utility services. manhole covers meet all the requirement of the code. Our covers are available in all standard sizes with load bearing capacity ranging from 205 ton to 40 ton (D400). They are circular, square and rectangular shapes available with single and double sealed arrangement on the cover is also available on request.

  All the sizes of manhole covers available in the following load bearings 2.5 ton / 5 ton / 10 ton / 12.5 ton (B125) / 20 tons / 25 tons (C250) / 40 tons (D400).

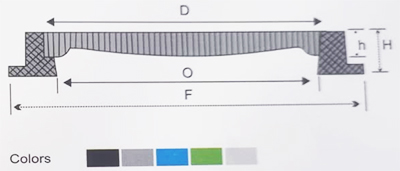

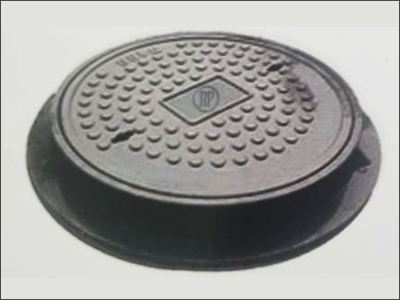

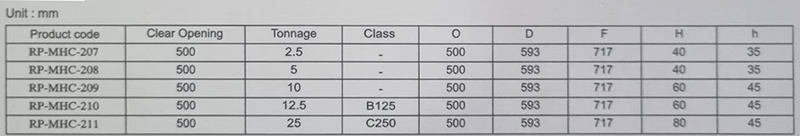

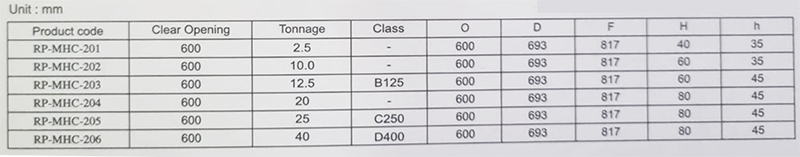

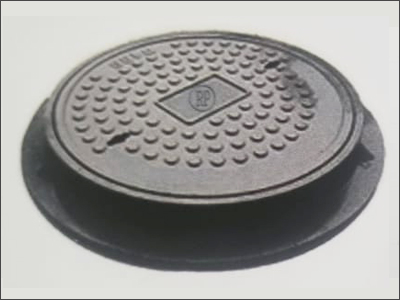

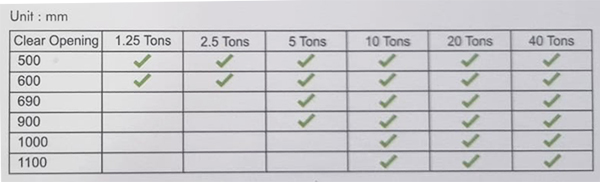

  CIRCULAR MANHOLE COVER




  Other Size Available on Request

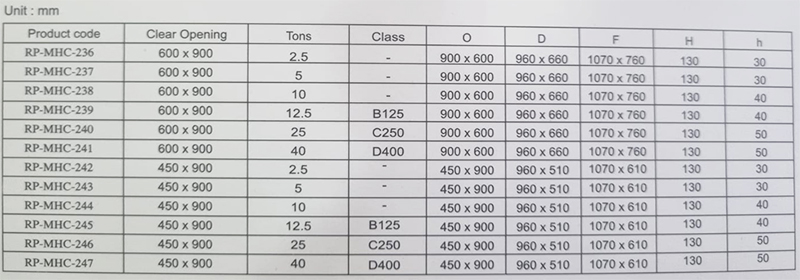

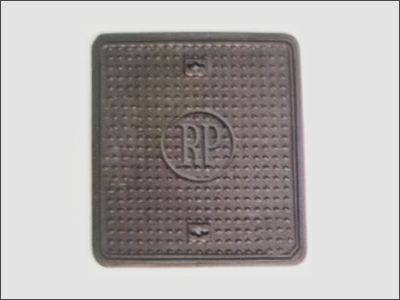

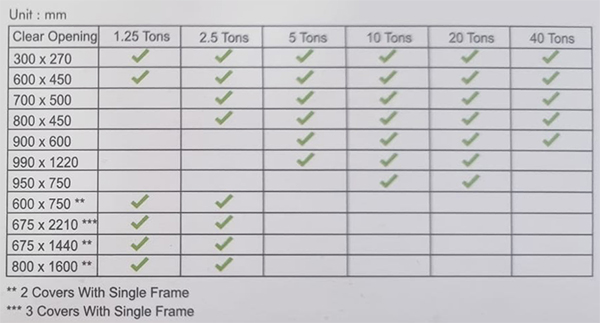

  RECTANGULAR MANHOLE COVER




  Other Size Available on Request

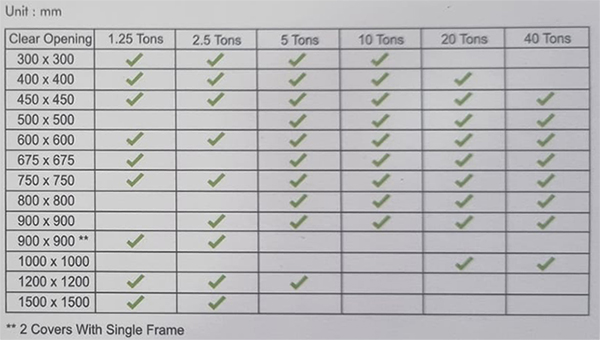

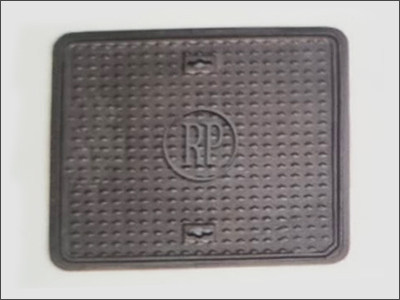

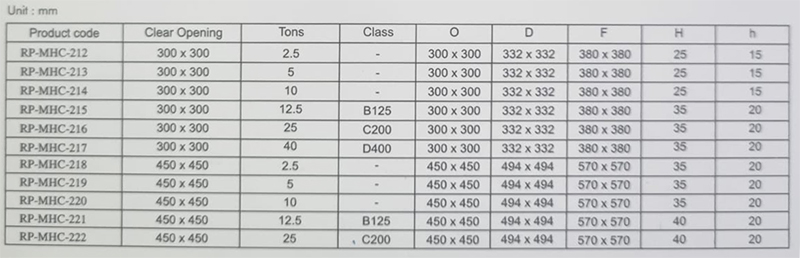

  SQUARE MANHOLE COVER




  Other Size Available on Request
